Block Master Plan
2012-13: Final year team project for the new Dundee City Waterfront redevelopment. The team proposed a more compact master plan that focus on more smaller fragmented central courtyards with narrow angled streets that fitted in with the existing city's typography to deal with the high winds weather and more pedestrian zoned pathways that contrast with the council's already set master plan for massive open space and the new ongoing V&A museum by Kengo Kuma.

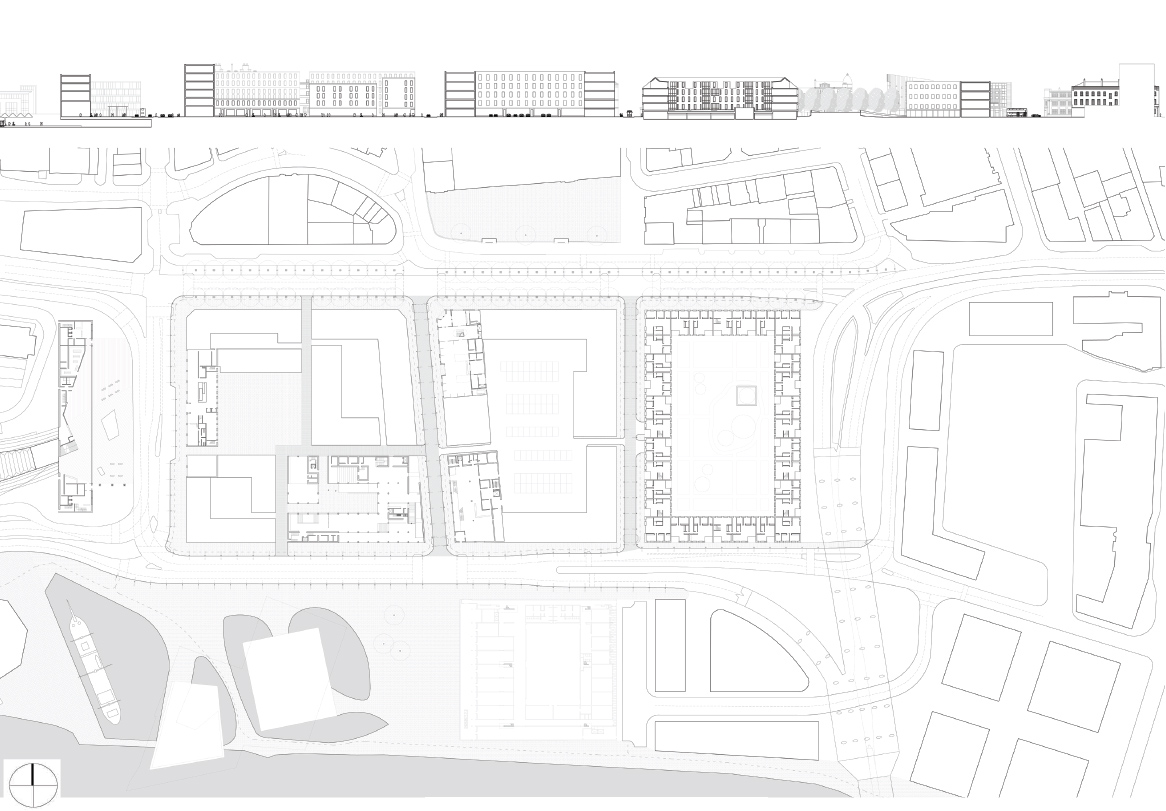

Section and Ground floor master plan layout
Section through city's High street to the waterfront
1:200 cardborad block master plan model

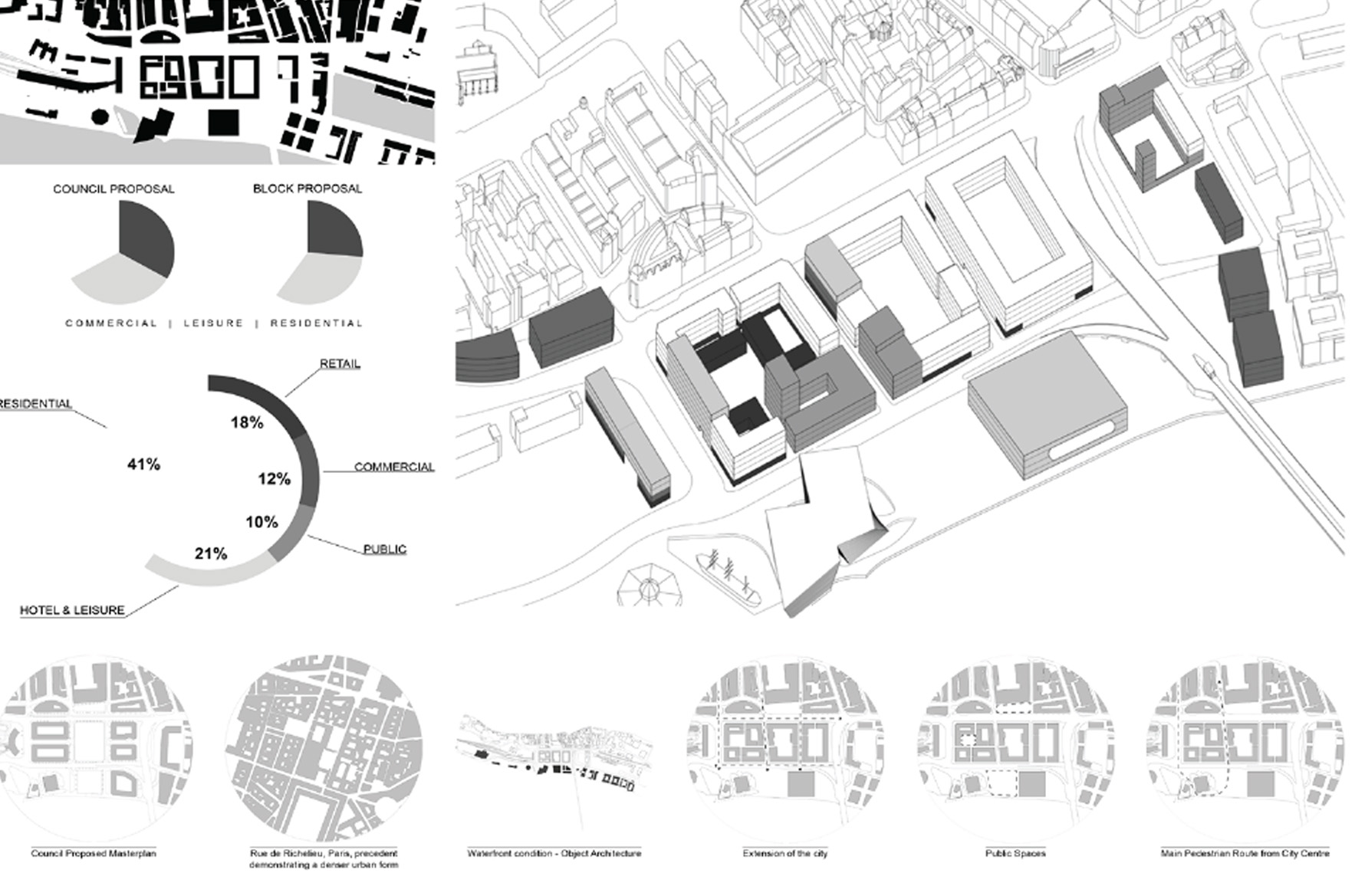

Scheme analytics and diagrams
North view
South view
Dundee city centre elevation study, 2013
